Soundproofing room N for vibration testing machine (without ground)

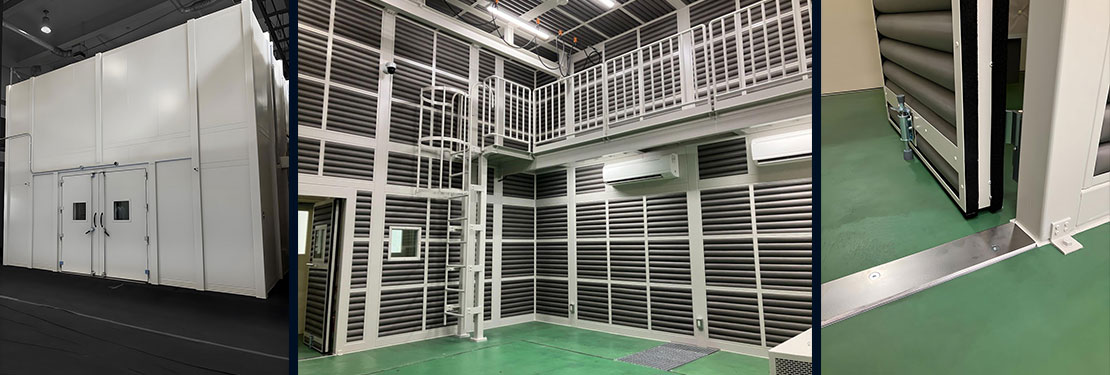

We have delivered a floorless soundproof room (N-type) to an industrial machinery manufacturer to reduce the operating noise of vibration testing equipment.

External dimensions

● Structure type: No floor slab (flat ground)

The internal space is spacious enough to operate large vibration testing equipment and bridge cranes, and its design balances ease of maintenance and operability.

Structure

External

● Steel soundproof panel

Internal

● GSS (sound-absorbing material) finish

Ground

● Direct floor structure (installed on existing floor slabs)

Openings and accessories

● Double open flat door sill (width 2400 x height 2200 mm),
Equipped with internal and external handles, door stops, and door stops.

● Single leaf flat door sill (width 900 x height 2000 mm)

● Fixed window (width 400 x height 400/420 x 420 t12) x 3 positions in total

Air conditioning and ventilation equipment

● Inlet muffler x 2

● Exhaust muffler x 1

● Exhaust fan x 1
● Air conditioning x 2 sets

Electrical equipment

● Socket: single-phase 100V 15A 2PE x 4 positions

● Lighting: A total of 10 units (1 to 4 sets of controls)
5200 lumens x 8 units
, 4000 lumens x 2 units

● Emergency lighting (main unit needs to be purchased separately)

● 2 automatic fire alarm detectors (main unit sold separately, including wiring holes)

● Emergency Broadcast Speaker x 1 (Host sold separately)

● Emergency alarm x 1 (main unit needs to be purchased separately)

● Distribution board x 1 (main power structure independent)

Crane equipment

● Suspension Hardware
Electric chain hoist (1 ton, with electric trolley)
Lowering the Head Electric Saddle

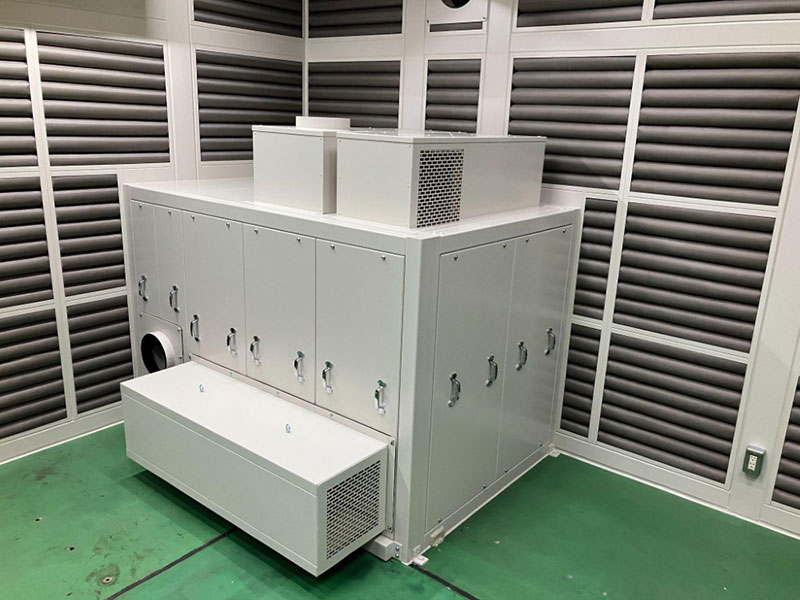

Sound insulation cover for blower (auxiliary equipment)

● External surface: Steel soundproof panel (painted finish)

● Interior: GWGC t75

● Intake muffler (detachable)

● Exhaust muffler (for blower/host)

● Exhaust fan

● Wiring hole: 50
