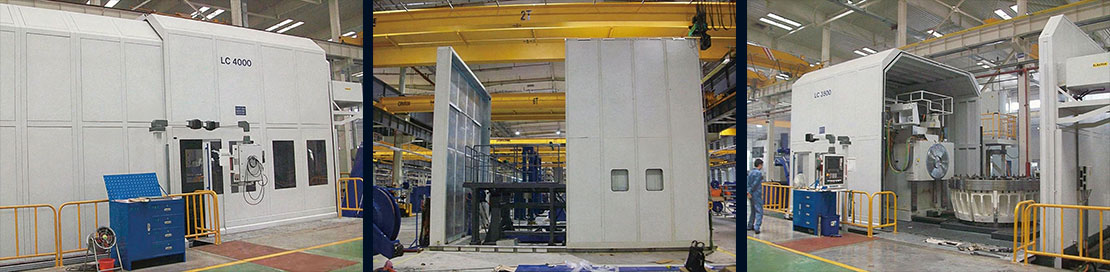

N-Shaped Door Soundproof Room

Product Overview

The opening mechanism of this soundproof room features an N-shaped structure with horizontal sliding movement.

Features

Easy assembly/disassembly, durability of up to 10 years, excellent sound insulation, convenient workpiece hoisting, and high safety.

Applications

Suitable for large-scale processing equipment requiring lateral workpiece hoisting, such as gear milling machines, gear grinding machines, etc.

Product Specifications

● The soundproof room adopts a modular frame structure with a wall thickness of 100 mm, ensuring robust construction, aesthetic appeal, and concealed screw holes.

● Equipped with an electrically operated N-shaped horizontal sliding door system, utilizing motors from brands such as ABB, Siemens, or other reputable domestic manufacturers.

● The maintenance door is a double-leaf hinged door fitted with high-quality handles.

● All exterior walls are constructed from 2.0 mm thick, high-quality galvanized steel sheets compliant with national standards.

● The wall cavity is filled with a proprietary self-developed composite sound-absorbing and insulating layer.

● The interior wall surface is lined with 5×5×1.0 mm thick, high-quality galvanized perforated panels compliant with national standards.

● The exterior surface is finished with electrostatic powder coating and cured at 220°C, providing wear resistance, anti-aging properties, and scratch resistance.
