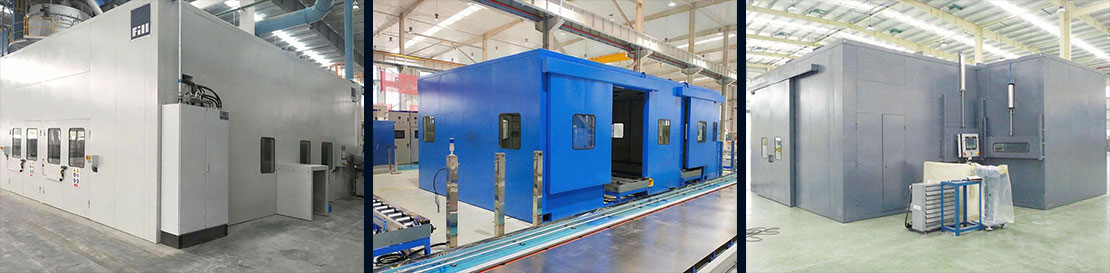

Grinding Machine Soundproof Room

Product Overview

This soundproof enclosure is designed for high-noise grinding machines. Since metal dust generated during grinding tends to accumulate, the ventilation system of the enclosure effectively addresses this issue.

Features

Easy assembly/disassembly, durability of up to 10 years, excellent sound insulation, efficient ventilation system, and pneumatic doors for workpiece access.

Applications

Fully automatic metal grinders, stainless steel grinding, special material grinding…

Product Specifications

● The enclosure adopts a modular frame structure with a wall thickness of 100 mm. The overall construction is robust and aesthetically pleasing, featuring concealed screw holes.

● The workpiece access channel is equipped with pneumatic sliding doors, using pneumatic components from brands such as SMC and FESTO.

● The maintenance door is a double-opening hinged door fitted with high-quality handles.

● All exterior walls are made of 2.0 mm thick high-quality galvanized steel sheets conforming to national standards.

● The wall cavity is filled with a proprietary self-developed composite sound-absorbing and insulating layer.

● The interior wall surface is lined with 5×5×1.0 mm thick high-quality galvanized perforated panels meeting national standards.

● The exterior surface is finished with electrostatic powder coating, cured at 220°C, resulting in a wear-resistant, anti-aging, and scratch-resistant finish.
