Fin Machine Soundproof Room

Product Overview

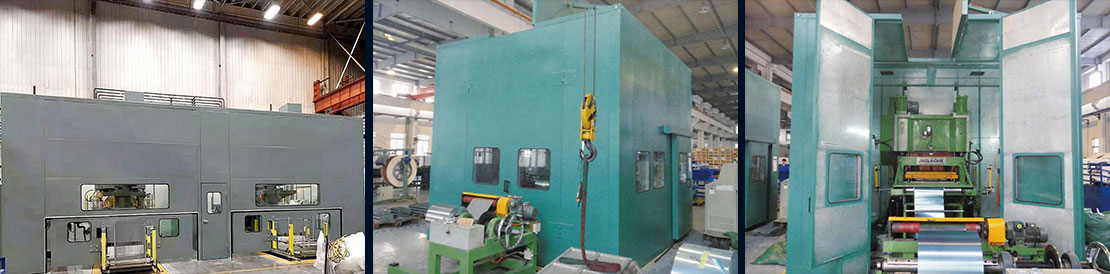

This soundproof room is designed for high-speed fin punching machines, suitable for use with 65T-150T fin machines.

Features

Easy assembly/disassembly, durability of up to 10 years, excellent sound insulation effect, and convenient mold hoisting.

Applications

Compatible with punching machine brands such as KYORI, Ningbo Jinda…

Product Specifications

● The soundproof room features a modular frame structure with a wall thickness of 80 mm. The overall construction is robust and aesthetically pleasing, with concealed screw holes.

● All exterior walls are constructed from 1.5 mm thick high-quality galvanized steel sheets conforming to national standards.

● The wall studs are made of 3.0 mm thick high-quality steel plates conforming to national standards.

● The interior wall surface is lined with 5×5×0.6 mm thick cold-rolled perforated panels meeting national standards.

● The wall cavity is filled with imported multi-specification composite sound-absorbing and insulating layers.

● The exterior surface is finished with electrostatic powder coating, cured at 220°C, resulting in a wear-resistant, anti-aging, and scratch-resistant finish.

● The front and rear doors are sliding doors on tracks, offering flexibility and convenience. The side doors are single-leaf hinged doors.

● Both the sliding doors and side walls are equipped with double-layer 5 mm thick tempered glass for shock resistance and sound insulation.
