Overview

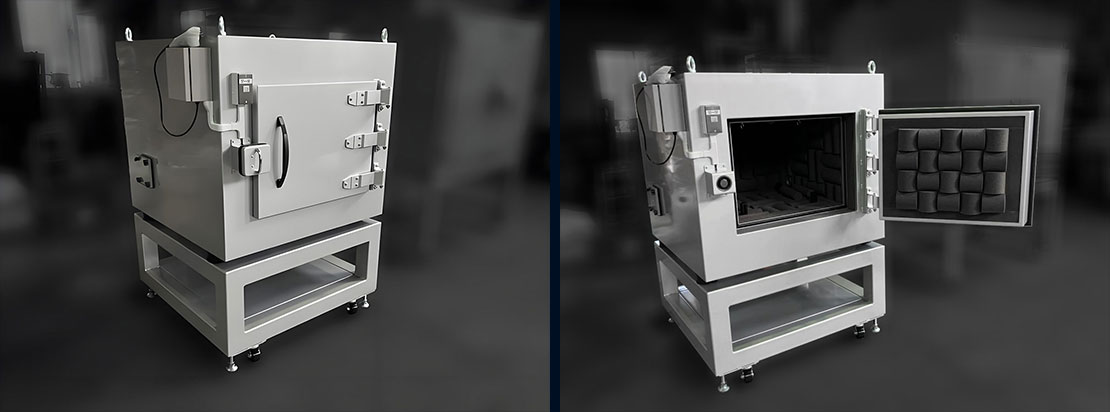

We have delivered a magnetic soundproof box to a machinery manufacturer
This compact and easy-to-use evaluation and measurement soundproof box combines multi-layer sound insulation structure and AST sound-absorbing material.
External dimensions
| External dimensions | The dimensions are approximately 1100 millimeters wide, 1050 millimeters deep, and 1650 millimeters high |
● Portable with wheels
● Integrated structure of dedicated bottom plate
Internal dimensions (effective dimensions)
| Internal dimension | Width 650 x Depth 650 x Height approximately 1050 millimeters |
Structure
Main structure
● Multi layer soundproof metal structure

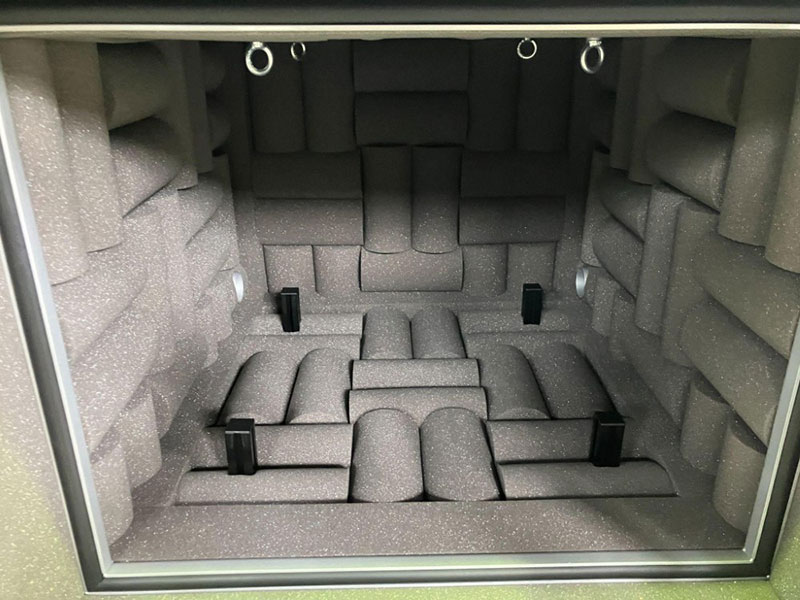

● Back sound-absorbing layer: AST sound-absorbing material
Doors and openings

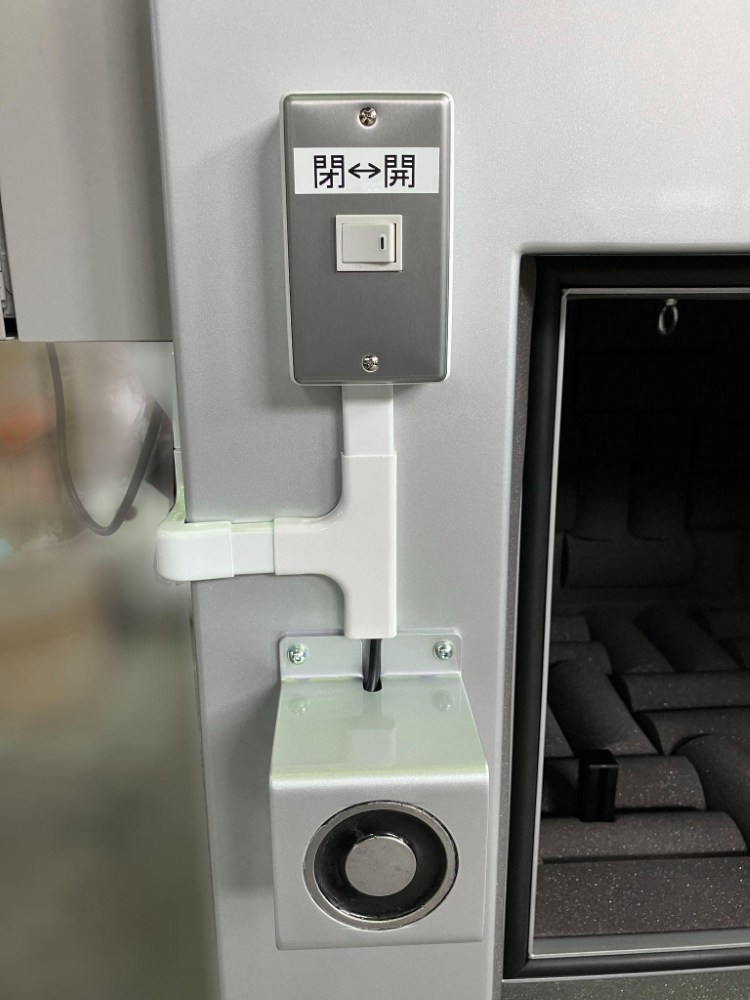

● Permanent electromagnetic bracket
● Blade hinge
● Equipped with an operating handle and unlock button
Floor structure
● Specialized base plate
● Equipped with internal vibration isolation layer
Contains sound-absorbing materials
● 1 x sound-absorbing table mat
● 2x pipeline sound-absorbing material
Main specifications
● Public pipeline: 2- φ 55 (with soundproof cover and sound-absorbing material)
● Aluminum frame for floor (30) x 4
● Eye bolts: 4 for loading
, 4 for microphones
● Regulator/Rotating Wheels
● Junction box
● Power plug (2-meter cable)
● Adopting a permanent electromagnetic bracket, the door has excellent sealing performance
